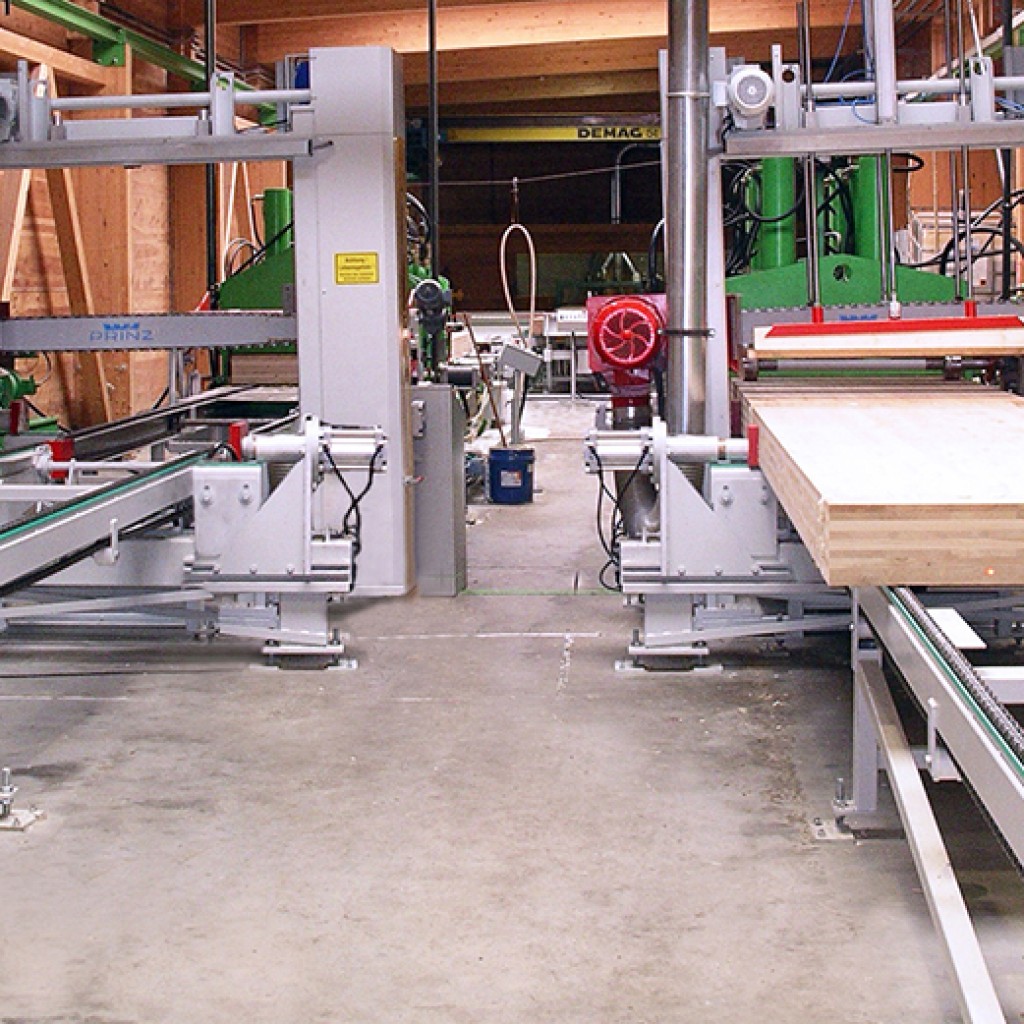

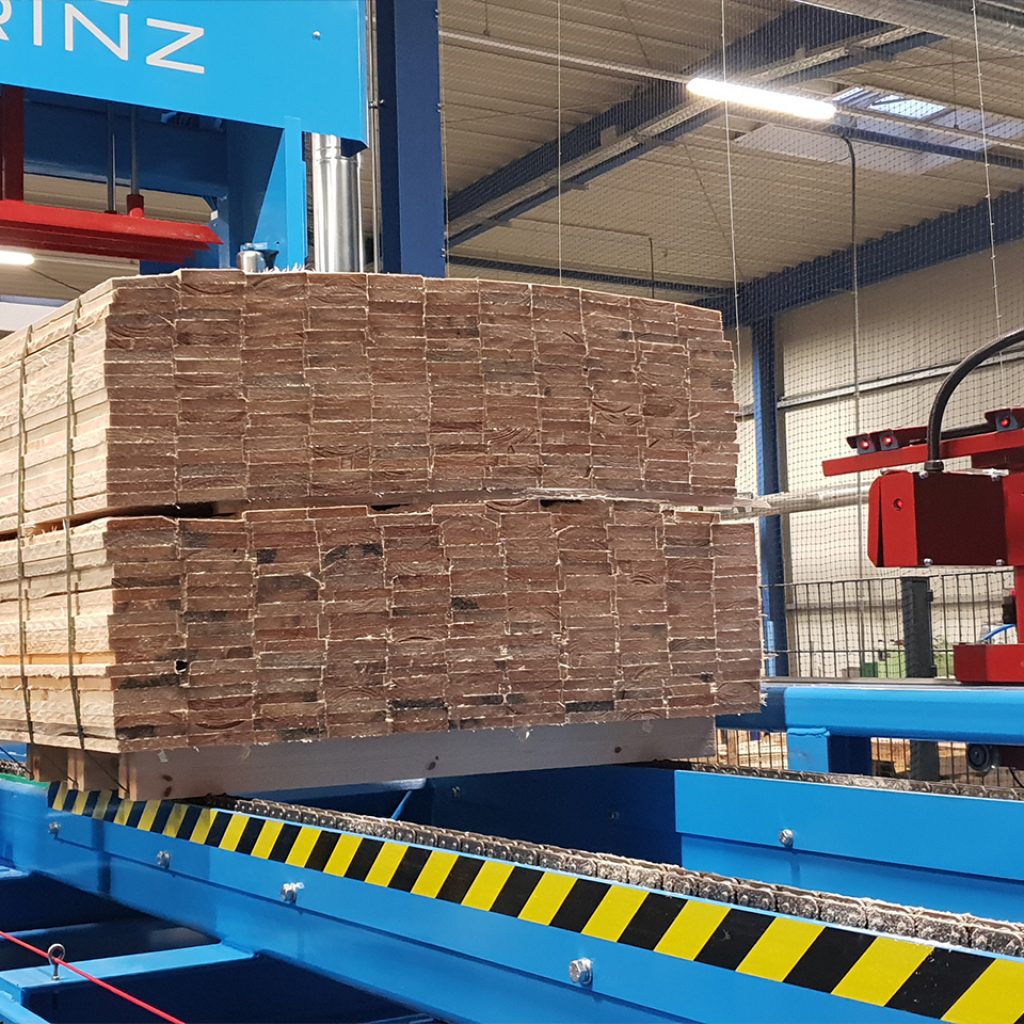

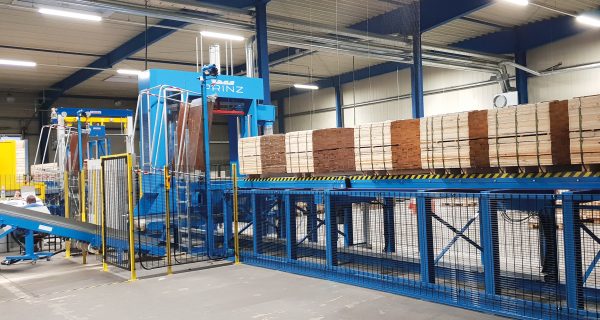

Chain conveyors are perfectly suited for the forwarding of packages of short length such as MDF, chipboard and composite materials as these systems are continuous and without any interruption. They are also the best solution when fragile surfaces have to be transported.
| Power: | 15 kW |
| Motor/Engine: | electric |
| Cutting accuracy: | ±1mm |
| Standard package size (width x height): | 120x120cm |
| Larger dimensions available: | yes |
| Cut feed: | gear motor |
| Guiding of the cut: | parallel precision linear bearing guide system |
| Saw type: | stationary saw/package moves |

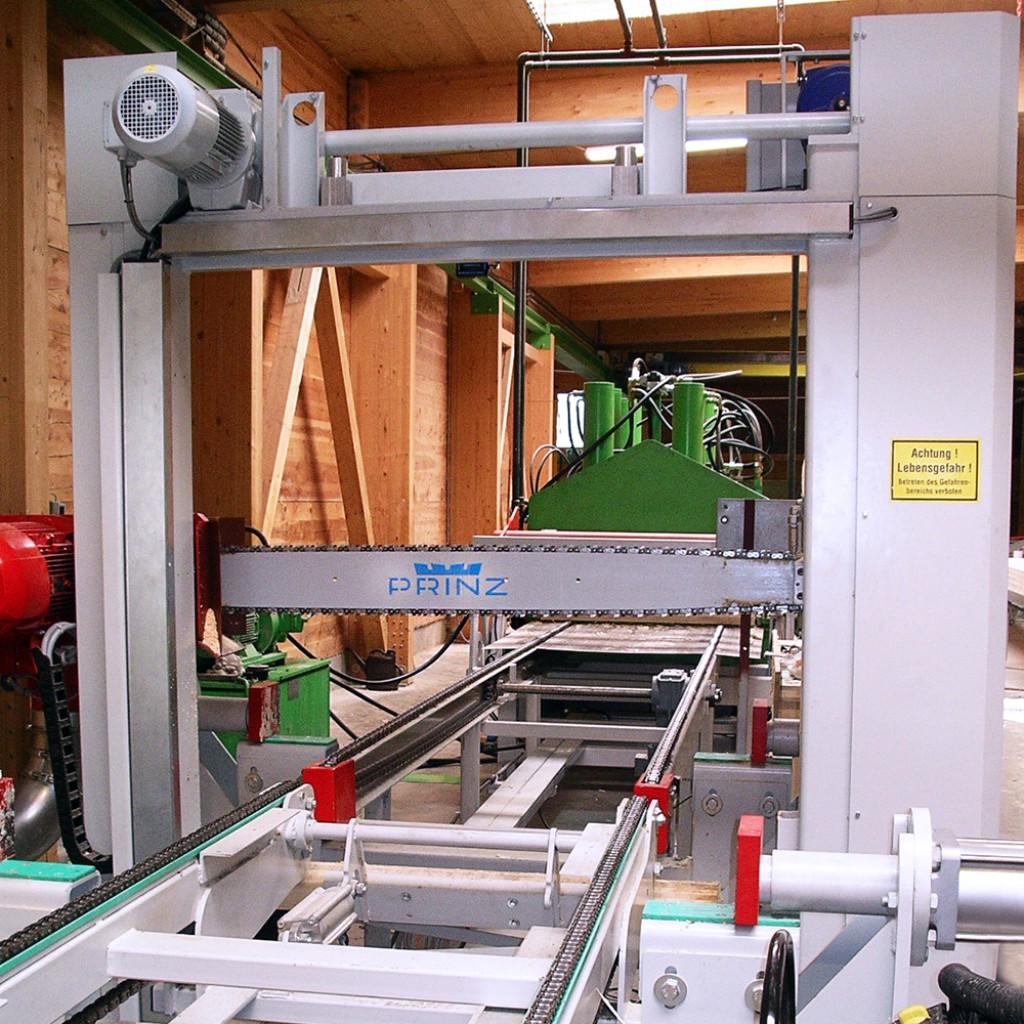

| Chain types: | scraper chain/ carbide tipped chain |
| Guide bar: | solid steel, special hard faced edge |
| Package/saw drive: | gear motor with frequency converter |
| Measuring device available: | yes |

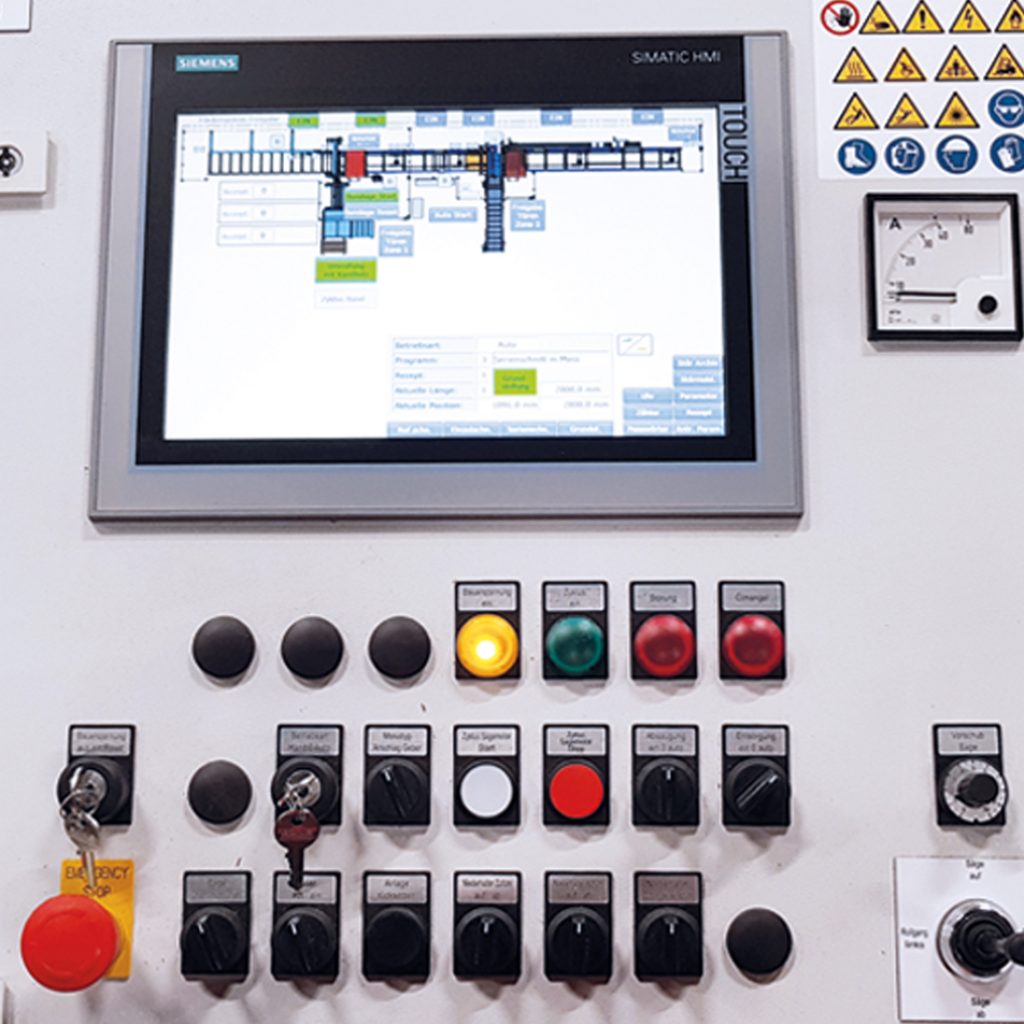

| Control system: | full and half automatic |
| Applications: | fully automatic production system with ±1mm cut accuracy, unlimited package length |
| Options: | manual or electronic measuring device |

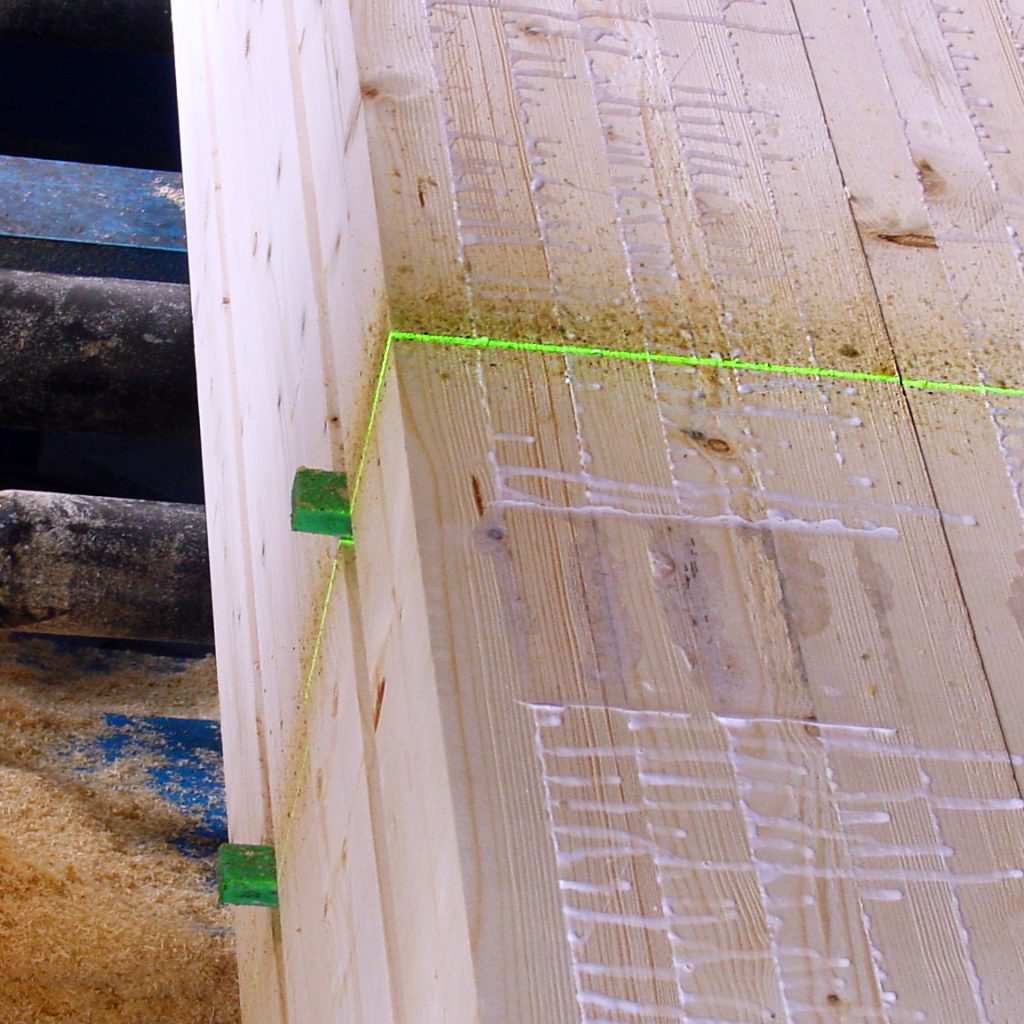

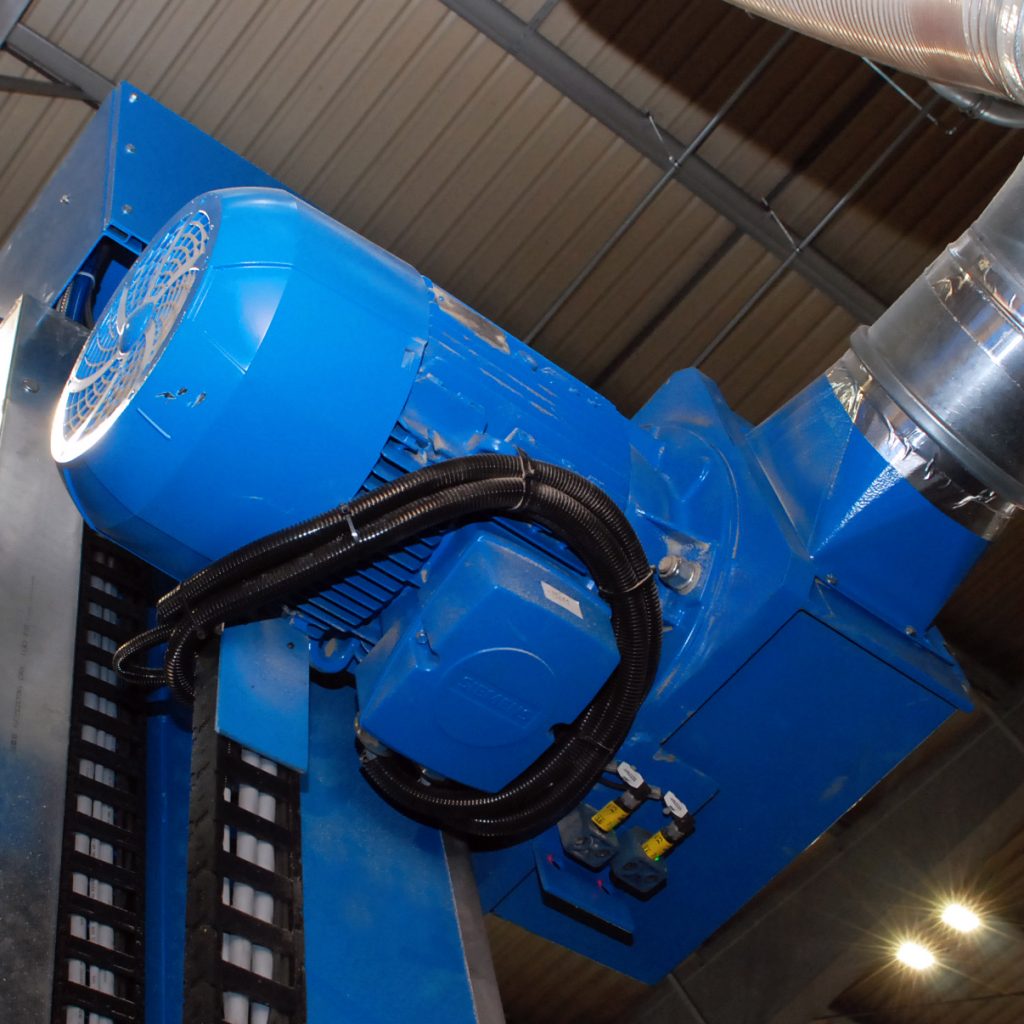

| exhaust connection, cross conveyors, laser light for cut position | |

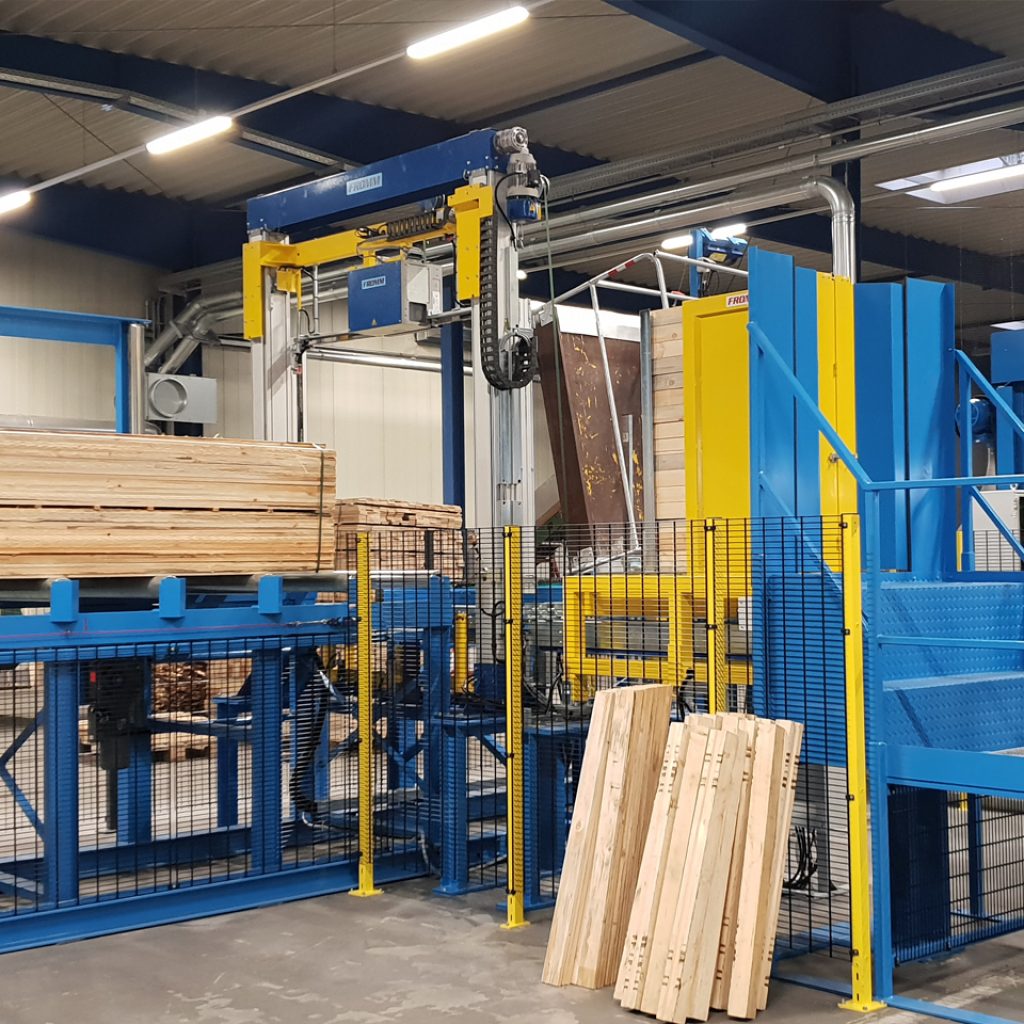

| strapping machine, conveyors for waste removal | |
| vibrating rollcase for package alignment to eliminate end trims, container for waste removal | |

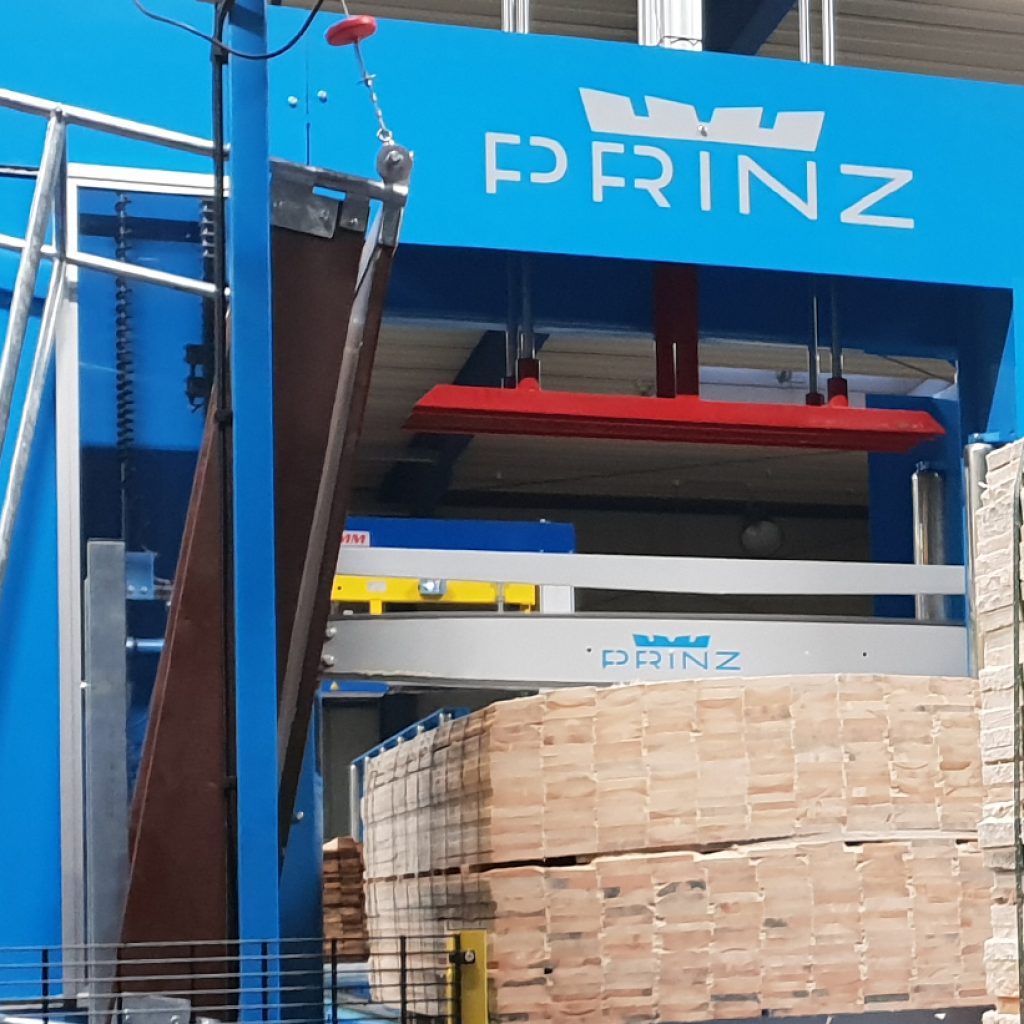

| package holding down appliance |
