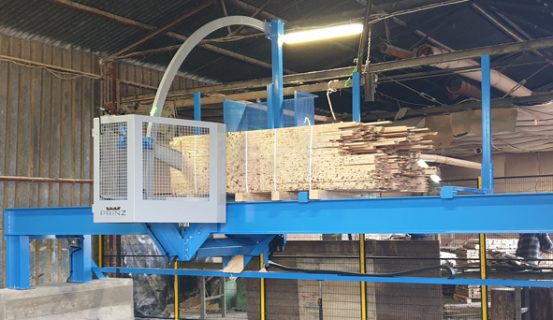

MOBILCUT TOP LINE

For enhanced working comfort, the MOBILCUT TOP LINE includes a saw positioning with electric drive.

More performance and ease of work!

  • motor power 11 kW
  • very robust guide arch
  • to cut packages up to  130×130 cm and 6 m length
  • reduced space requirement with only 8,5 m length
  • cut accuracy of ±2 mm with arch guiding
  • electric feed for cutting, control by joystick
  • with digital readout of the length

Technical Data

Power: 11 kW
Cutting accuracy: ±2 mm
Standard package size (width x height): 130 x 130 cm
Cut feed: electric
Guiding of the cut: with arch
Saw type: saw moves/stationary package
Chain types: scraper chain/ carbide tipped chain
Guide bar: solid steel/ special hard faced edge
Cutting performance: 1,8 min/m²
Package/saw drive: positioning of the saw electrically (eight lengths programmable)
Applications: travelling saw to handle packages up to 6m length with a cut accuracy of ±2mm and limited space requirement
Measuring device: included
Optional extras:

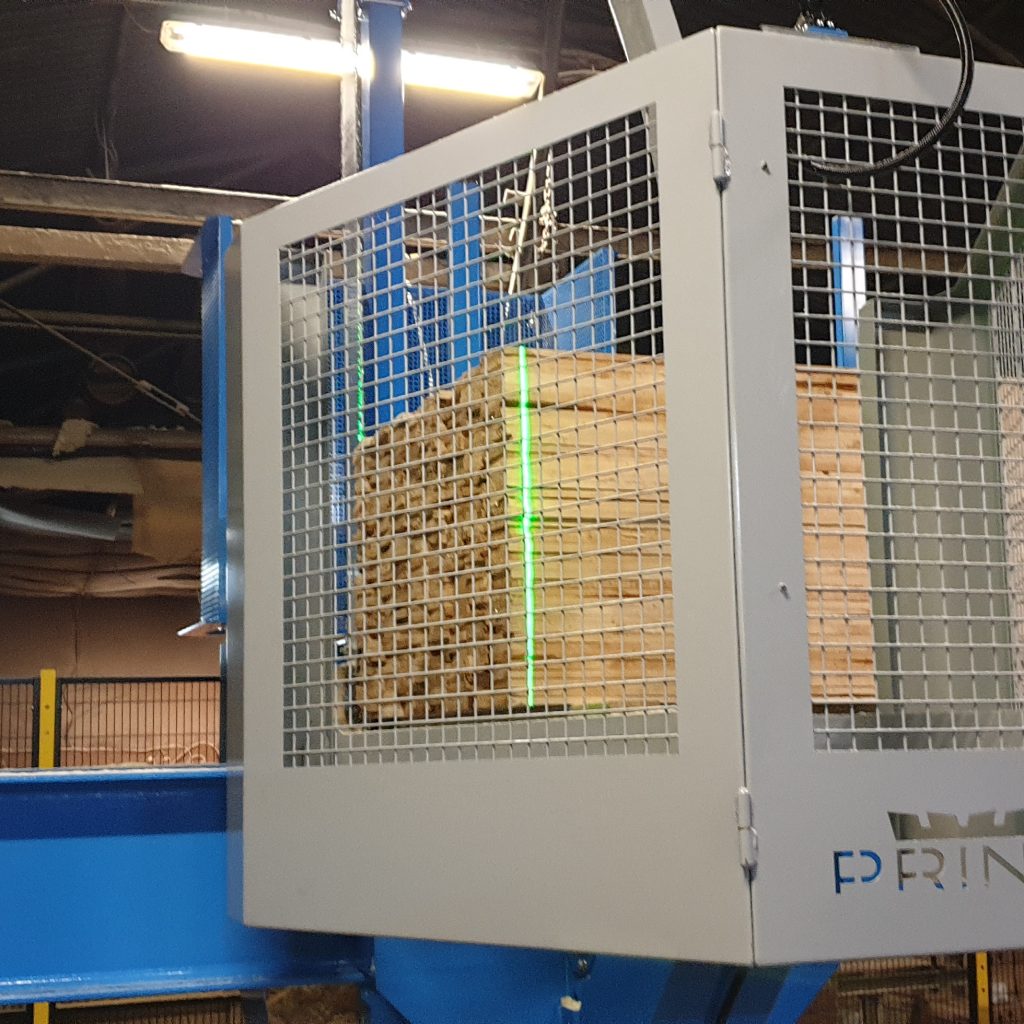

  • laser light for cut position
  • conveyors for waste removal
  • container for waste removal
  • connection for dust extraction
  • connection adapter for the exhaustion system
  • pressure pads
  • pneumatic package lift
  • loading frame 160cm
  • supply via drag chain
  • operation is also in front of the saw
